100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

Shandong Honest Machinery Co., Ltd.
Contact Now

100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

  • 1
  • 2

Brand Name : HONEST

Model Number : HN1530

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1Set

Price : $20000-$40000/Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 7-30 work days

Packaging Details : The inner packing is plastic film and the outer packing is wooden box or plywood Only plastic sheeting wrapped naked with wooden trays.

Name : 3015 1000W 1500W 3000W CNC Metal Fiber Laser Cutting Machine for Stainless Steel Iron Aluminum Sheet

Cutting thickness : 0-15mm

Cnc or not : CNC

Application : steel metal cutting

Cutting speed : 70/min

Warranty : 1 Year

Cutting area : 1530

Laser power : 2000W

Contact Now

3015 1000W 1500W 3000W CNC Metal Fiber Laser Cutting Machine for Stainless Steel Iron Aluminum Sheet

1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, Honest, best price and high quality, with CE etc certificates.

Model HN-3015
Working area 3000mm x 1500mm
Rated laser power (optional) 500W~3000W
Traditional system Gantry double drive structure
lubrication system Fully automatic
Maximum speed 100m/min
Maximum acceleration 1.0G
positioning accuracy ±0.01mm/1000mm
Repeated positioning accuracy ±0.03mm/1000mm
Support for graphic formats CAD, DXF(etc)
Total power 20KW
Power demand Three phase 380V / 50Hz / 60Hz
Outline size 4450mm x 2450mm x 1800mm

100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

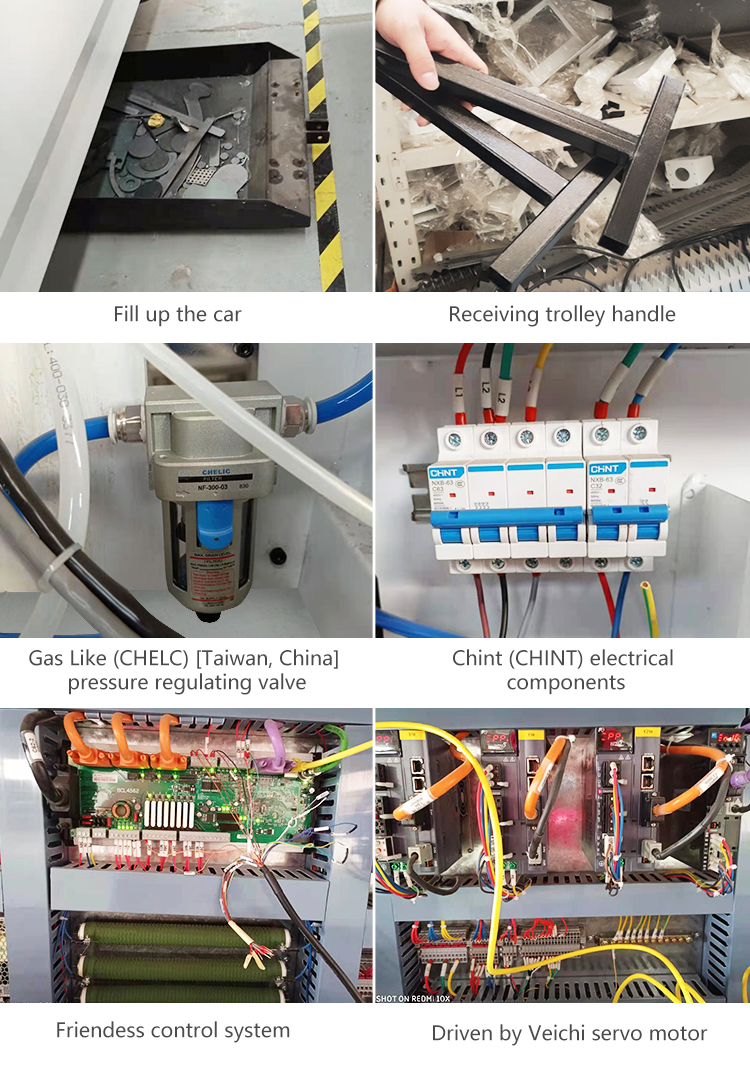

Machine Parts

HONEST Laser Promise
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!

100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

Company Information

Shandong Chengcheng Machinery Co., Ltd. is a provincial key enterprise specializing in the research and development of CNC equipment. It integrates development, production and sales.

The company has a series of CNC engraving machines, laser fiber cutting machines and other products, which are widely used in metal cutting, wood processing, stone processing and other industries. The equipment is sold in various provinces and autonomous regions, and exported to Russia, Mongolia, South Korea and other countries. Advanced manufacturing technology, large-scale production, high-quality product quality, professional user training, and timely after-sales service are the basis for ensuring customer satisfaction.

100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

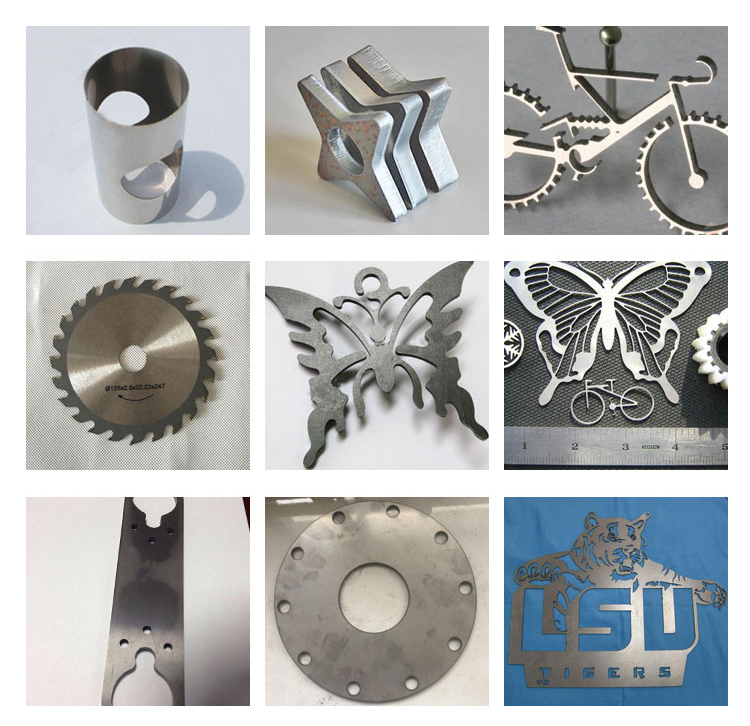

Application&samples

It can cut many kinds of metal plates and pipes. It is mainly suitable for the fast cutting of stainless steel, carbon steel, manganese steel, galvanized plate, various alloy plates, rare metals and other materials.

Applications

Kitchen fixtures, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies. fiber laser cutting machine 100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W

Our Services

Pre-sale
Provide detailed suggestions, as well as the introduction of laser fiber cutting machine, program suggestions
And on-site inspection, as far as possible to meet your problems and needs.


Payment and machine production
Support a variety of payment methods for laser fiber cutting machines, the production process is transparent, standardized, and fast delivery. After the machine is completed, it can take a video for you


After sale
Support diversified guidance, training, voice and video images of laser fiber cutting machines, and even on-site installation, on-site training, daily maintenance, continuous return visits, and customer service of overseas fiber machines.

100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W


Product Tags:

3000W Fiber Laser Cutting Machine



100m/min Fiber Laser Cutting Machine



CAD Fiber Laser Cutting Machine


 100m/min CNC Metal Fiber Laser Cutting Machine For Aluminum Sheet 3015 3000W Manufactures
