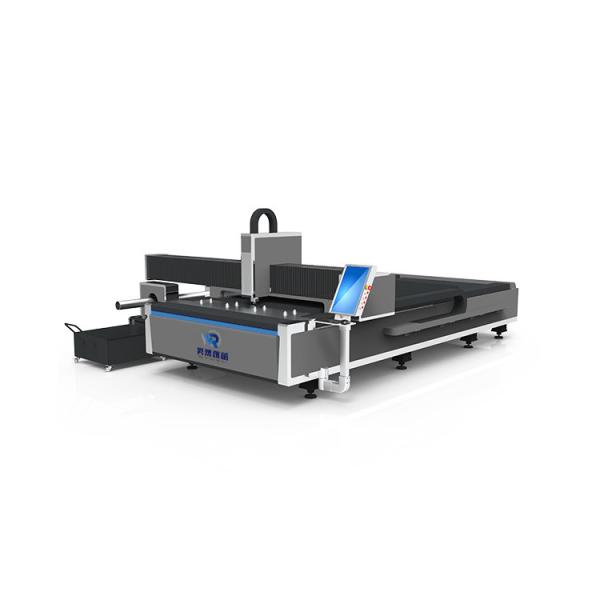

3000 X 1500 Stainless Steel Carton Metal Pipe And Plate Fiber Laser Cutting Machine For Sale
Product Information:
The tube-plate integrated fiber laser cutting machine is one of the main products of Honest Laser. It is a high-performance fiber laser cutting machine specially developed and designed for users in various industries of tube and sheet metal processing. It has high configuration, high cutting efficiency, and operation. Many technical advantages such as low cost and stable performance have perfectly inherited Honest Machinery's 20 years of laser equipment manufacturing experience.
Product Data:
| Model | HN-3015 |
| Cutting range | 3000*1500mm |
| Laser powe | 1000W |
| Positioning accuracy | 0.05mm |
| Reposition accuracy | 0.03mm |
| Min.line width | 0.1mm |
| Output power stability | ±1.5% |
| Maximum acceleration | 0.6G |
| Maximum speed of chuck | 45m/min |
| Center wavelength: (nm) | 1080±5 |
| Upgrade | Integrated plate and tube/exchange platform/fully enclosed protection |
| Chiller | 2kw |
| Power supply | 380v±10% |
| Red light positioning | provide |
| Warranty | 3 years |
| Gross Weight (kg) | 3500 |
| Dimension | 4800×2300×1800mm |
| Laser source working temperature (℃) | 10-40 |
| Laser source cooling method | water cooling |

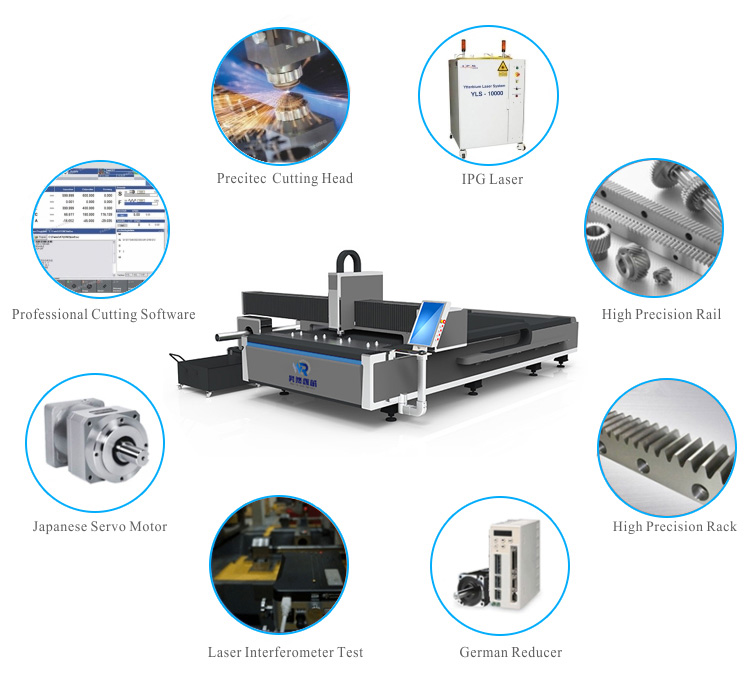

Product Details:
1. Auto-focus laser head: The same laser head can quickly change the focusing lens of different focal lengths, adapt to various power processing, and meet the cutting of different thickness plates. By using the auto focus function, users can quickly and accurately focus when cutting or engraving, which makes cutting or engraving work more time-saving and better. Therefore, using a laser head with auto-focus function can help you improve efficiency in the work process.
2. Japan Fuji Servo Motor: Stable and powerful power output. As a world-class motor manufacturer, Fuji Servo Motor enjoys a high reputation in motion control. Won the market's praise in the industry and has been highly recognized by customers.
3. Cypcut professional intelligent control system, with automatic nesting function, stable performance, fast operation, supports a variety of common file formats, DXF, PLT... one-click import of multiple types of cutting graphics, accurate cutting instructions To make the user experience better.
4. Wireless handle control operation is simpler and more efficient.
Product Application:
1.The advertising industry has a lot of customization and traditional methods are very inefficient. The laser cutting machine will satisfy you no matter how thick the sheet is, no matter how many fonts.
2.Many manufacturers only do sheet metal processing, not finished products, so the laser cutting machine can be said to be a very good solution. The cost of manpower and material resources can be greatly reduced. As long as there is an order, the operation can be started immediately.
3.There are many types of kitchenware, and the laser cutting machine can meet all kinds of customized production,whether it is mass production or small batch personalized production, as long as there is a drawing, it can be produced.
4.Many aspects of the automobile manufacturing industry can be solved by laser cutting machines.Automobile doors
,body,underbody,hood, rear cover, airbags, etc., and some small parts can be processed by laser cutting machines. The laser can cut and perforate various traditional or special-shaped pipes such as round pipes, square pipes, elliptical pipes, D-shaped pipes, etc., and process any complex curve graphics on the pipe surface without being limited by the difficulty of graphics, and the cutting The pipe section does not require secondary processing and can be directly welded, which greatly shortens the
production period and creates unlimited value for the enterprise.
