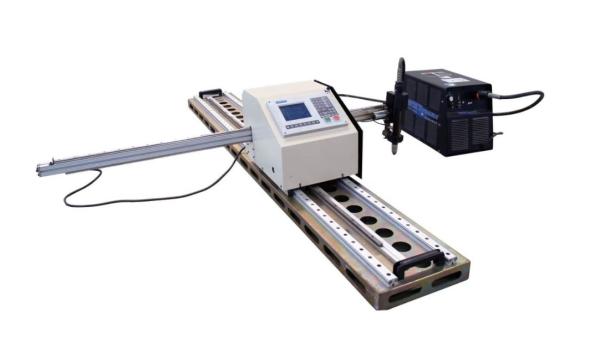

Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min

Product Categories
Shandong Honest Machinery Co., Ltd.
Contact Now

Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min

  • 1
  • 2

Brand Name : Honest

Model Number : HN-1530

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : 3500-5000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40set /month

Delivery Time : 20-30day

Packaging Details : Wooden case packing

Product name : Portable Plasma Cutting Machine

Model : HN3015

Cutting width（mm） : 1500

Cutting length（mm） : 3000

Cutting thickness : 5-20mm

Travellingspeed （mm/min） : 8000

Cutting speed （mm/min） : Depend on the thickness of the board

Mechanical precision : ±0.2mm/m

Contact Now

Metal Portable Plasma Cutting Machine
Product Paramenters
Model
Plasma cutting machine (high configuration)
X,Y working area
1300*2500mm/1500*3000mm/1500*4000mm/1500*5000mm/1500*6000mm
Z working area
60 mm
Lathe bed
Very thick steel structure
Machine Power
8.5KW
Working voltage
380V three phase 60hz
Reposition precision
0.02mm
Processing precision
0.1mm
Maximum cutting speed
50-4000mm/min
Cutting thickness
2-30mm, determined by plasma power supply
Plasma power supply
60-200A
Control system
STARfire
Motors
Stepper motor
Software
Starcam
Weight
600KG
Plasma Air Pressure
Max.0.8Mpa
Products Description
Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
Plasma cutting machine with different working gases can cut all kinds of metals that are difficult to cut with oxygen, especially for non-ferrous metals (stainless steel, carbon steel, aluminum, copper, titanium, nickel); the main advantage of plasma cutting is that when cutting metals with small thicthe okness, the plasma cutting speed is fast.
Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
Details Images
System function:

Processor: adopts industrial-grade ARM 7 processing chip;

1. 7-inch color LCD display, input and output: the system provides 13 optically isolated inputs and 8 optically isolated outputs

2.. The CNC system of Shanghai Jiaotong University is suitable for all kinds of flame/plasma cutting machines, and is widely used in metal processing, advertising, stone and other industries.

3. The system has a highly reliable design and has the ability to resist plasma interference, lightning strikes, and surges.

4. Practical flame/plasma cutting technology, during plasma processing, the corner speed control and height controller control are automatically completed;

Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
Application Example
plasma cutting machine.Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.plasma cutting machine.
Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
Portable Metal Plasma Cutting Machine 8.5KW 8000mm/Min
FAQ
1: Is the plasma power authentic?
A: all of them are genuine products. LGK is a famous brand in the industry. All products are guaranteed for one year, and the effect is the best in the industry

2: which plasma do I need to buy to cut 10 mm carbon steel plate?
A: take 120a as an example, with ordinary p80 cutting gun, it can cut 12mm thickness, with fine cutting gun, it can cut gun

3: which plasma do I need to cut white steel plate (stainless steel)?
A: the plasma current of stainless steel with the same thickness needs to be increased by 30% compared with carbon steel,The hardness of stainless steel plate is stronger than that of carbon steel. The machine that can cut 10 mm thick carbon steel can only cut 6 ~ 7 mm stainless steel

4: What is the groove like( Perpendicularity)
A; Different plasmas are different. Topron plasma cutting gun can cut 18mm carbon steel with verticality no more than 2mm. The second-line brand can only reach about 15mm, and the verticality is generally between 4 ~ 2mm.
